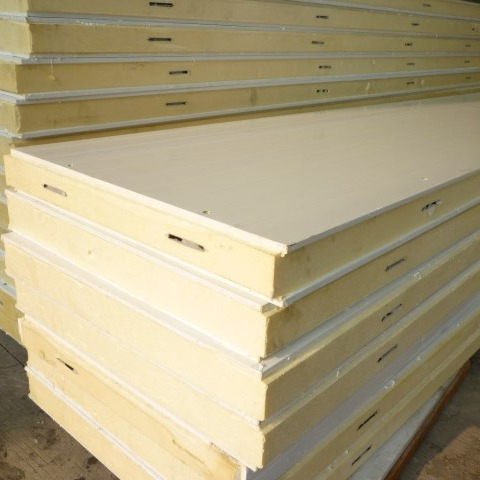

Metal Insulation Foam Core Cold Room Sandwich Panels

100 Square Meters
MOQ
Metal Insulation Foam Core Cold Room Sandwich Panels
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: isolation foam core cold room sandwich panels
Panel Material: Metal
Interior material: High quality polyurethane
Temperature: -50~+50°c
Thickness of PU panel: 50mm/75mm/100mm/120mm/150mm/200mm
Length of PU panel: Customer's Choice
Certificate: ISO9001/14001
Width of PU panel: 950mm/1000mm
Color: milk white,grey or others
Density: 40+/-2 Kg/m3
Fireproof: B2 Grade
PU panels cover: color plate,aluminum,stainless steel ,galvanized sheet
Основная информация
Сертификация: ISO9001/14001
Model Number: isolation foam core cold room sandwich panels
Оплата и доставка Условия
Характер продукции
Advantages

PU cold room panel advantages

  • Waterproof and fireproof.
  • Environment-friendly materials
  • 6 years manufacturer for cold storage base in china
  • Competitively price
  • ISO9001-2008;ISO14001-2004
Product Description

Cold Storage is in thermal insulation materials such as polyurethane insulation board ,and create the suitable temperature by cooling facilities warehouse and low temperature conditions.
Fruit and vegetable cold room can be widely used in food,dairy,pharmaceutical,chemical,logistics,fruits and vegetables,eggs,hotels,supermarkets,hospitals,stations,ships,military etc.

Product Desription of PU Panel

Weight of PU panel50mm,75mm,100mm,120mm,150mm,200mm
Length of PU panelAccording to user requirements
Width of PU panel960mm/1000mm
Fireproof

According to customer requirement, default is B2 grade

Density42~45(KG/M3)
Temperature-50°C ~ +50°C
PU panels cover

Color plate,aluminum,stainless steel,galvanized steel,

Interior materialHigh quality polyurethane(PU)
Product nameisolation foam core cold room sandwich panels
After-sales Service Provided

No overseas service provided

Warrantyone year
CertificateISO9001;2008

Performance Parameter of PU Panel

ProjectNormOur company
Density40±2kg/m340.91 kg/m3
Thermal conductivity≤0.024W/(m.K)0.021 W/(m.K)
Compressive strength≥160kpa170kpa
Adhesive strength>0.100MPa0.145 MPa

Cold Storage Panel Application Temperature

Thickness of cold storage panel Application Temperature
50mm Temperature 5°c or above
75mm Temperature -5°c or above
100mm Temperature -15°c or above
120mm Temperature -25°c or above
150mm Temperature -35°c or above
200mm Temperature -50°c or above
Product Display

Installation

Our Services

As a professional enterprise specializing in manufacture and marketing of Fruit and vegetable cold room , Changzhou Dongqi has grown up as a success one in China in the market of refrigeration. We have set up a foreign trade department for servicing our clients from other countries;

We can certainly offer you:

1. Best quality & best price.

2. Satisfactory service.

3. Long-term cooperate relationship.

4. Door-to-door service under a paid partnership.

And we also accept:

1. Visit to our factory.

2. Airport picking-up.

3. Customized requirement.

4. Inspection from your side any time during the production process and before delivery.

FAQ

1. What is the thickness of the Cold Storage panel?

The thickness of the cold Storage panel is 50mm, 75mm, 100mm, 120mm, 150mm, 200mm.

2. If you want to customize the Large Usage and High Efficiency Cold Storage , the details about the cold storage as follows you should tell me.

(1) What is the size of the cold storage?

(2) What is the cold storage used for?
