Характеристики

Applicable Industries: Building Material Shops, Retail, Energy & Mining

Ice Shape: Flake Ice

Weight: 5000 KG

Warranty: 1 Year, 1 Year

Key Selling Points: High Productivity

Ice storage capacity: 1000kg

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: Pressure vessel, Gearbox

Compressor brand: Emerson, Bitzer

Application: Industrial, Fresh-keeping

Product name: comercial ice machines

Type: Automatic Flake Ice Machine

Capacity: 1-50tons/day

Cooling way: Air Water Evaporating Cooling

Ice size: Customized Size

Power supply: 3P/220V-440V/50Hz/60Hz(Optional)

ICE Thickness: 1.5~2.2mm

Function: Multifunction

Основная информация

Оплата и доставка Условия

Supply Ability: 30 Set/Sets per Day

Характер продукции

Product Overview

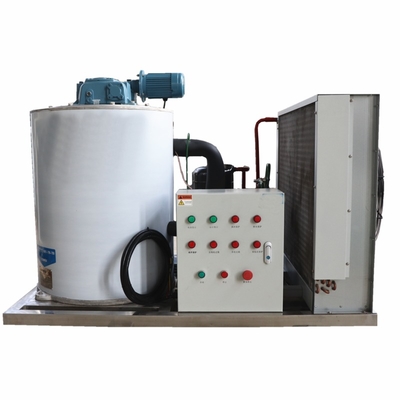

FLAKE ICE MACHINE

FEATURES AT A GLANCE

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

TECHNICAL DATA
Model	MIF5T-R4A
The technical data based on	25℃ambient temp. 20℃water inlet temp.
The evaporating temperature	-20℃
The condensing temperature	38℃
Power supply	3P/380V/50Hz
The ice thickness	1.6-2.3mm
Refrigerant	R404A
Daily Output(Ton/24hrs)	5tons
Cooling Capacity(kw)	38.7
General Power(kw)	22.55
Compressor Input(kw)	20.5
Reductor Power(kw)	0.37
Cooling Mode	Air Cooling
Water Inlet/ Drain Pipe	3/4”;1/2"
Weight(kg)	980
Dimension(mm)	203015001470

PRODUCT CONFIGURATION

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in India

Project in Russia
