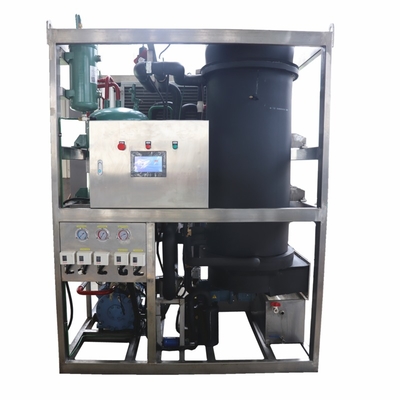

Commercial 5 Ton Transparent Tube Ice Making Machine For Drinks In Bars / Restaurant / Night Clubs / Hotels

1.0 Sets
MOQ
Commercial 5 Ton Transparent Tube Ice Making Machine For Drinks In Bars / Restaurant / Night Clubs / Hotels
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Condition: New
Ice Shape: tube ice
Voltage: 380V,50hz,3P/customized
Power: 22.75kw
Dimension(L*W*H): 1900*1400*2500
Weight: 2300 KG
Warranty: 1 Year
Key Selling Points: Competitive Price
Ice storage capacity: 1.5kg, 2.5kg, 5kg, 10KG, 15kg, 18kg, 20KG, 25KG, 30kg, 35KG, 40kg, 45KG, 50kg, 60KG, 70kg, 80KG, 90kg, 100KG, 120kg, 140kg, 150KG, 200KG, 250kg, 300Kg, 350KG, 400kg, 450KG, 500KG, 600kg, 700kg, 800KG, 900kg, 1000kg, Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Compressor brand: Emerson, Bitzer, Maneurop, Copeland, Danfoss, Hanbell, Refcomp
Application: Commercial
Brand: ICE LEADER
Ice Type: tube ice
Cooling way: Air Cooling Water Cooling
Refrigerant: R404a/R22a/R717
Material: Stainless Steel 304
Control system: PLC+Touch Screen
After-sales Service: Free spare parts,Repair service,Video technical support,Online support
Ice Cube Size: 22,29,35,42
Основная информация
Оплата и доставка Условия
Packaging Details: plywood case
Supply Ability: 500 Set/Sets per Month
Характер продукции
Product Paramenters
Standard Design Conditions: 30℃ ambient temp.
20℃ water inlet temp.
The evaporating temperature: -15℃
The condensing temperature: 40℃
Cooling methods: Air cooling or Water cooling.
Power supply: 3P/380V/50HZ or customized
Ice tube external diameter: Φ22、Φ29、Φ35、Φ42
Refrigerant: R404A or R22 or R717
Can be customized to meet any type of non-standard custom requirements.
TECHNICAL DATA
Model
MIT5T-R4A
Ice output
5t/24h
Cooling Capacity(KW)
42.3
Total input power(KW)
22.75
Compressor input power(KW)
18.1
Ice cut reducer input power(KW)
0.75
Water pump input power(KW)
1.5
Condenser Fan input power(KW)
2.4
Water Pressure
0.1Mpa－0.5Mpa
Refrigerant
R404A
Water Consumption(m³/h)
0.21
Water supply tube Diameter
2"
Overflow pipe
1-1/4"
Drain pipe
1-1/4"
Weight of Ice machine (kg)
2300
Diameter of Ice Machine(mm)
1900*1400*2500
Products Description
Company Profile
SHANDONG LEADER ICE MACHINE CO.,LTD (ICE LEADER) boasts a high-tech enterprise integrating research and development, production, manufacture and sales of ice-making equipment with many related patents. Meanwhile, we are the manufacturer with independently technology research and development, production and manufacture of large-scale ice machine, pipe ice machine and automatic ice storage production in the north region of Yangtze River.
The headquarter of ICE LEADER is located in the worldwide famous "The Capital of World Spring"- Jinan, Shandong province. ICE LEADER covers an area of 12000 with multiple horizontal, vertical lathe, reaches 6 production lines of ice machine and RMB 70 million yearly revenue.
The main products of ICE LEADER are flake ice machine, tube ice machine, ice flaker evaporator, block ice machine, containerized ice plant system with automatic ice storage and delivery. The daily output ranges from 350KG to 100T. ICE LEADER ice machines have been taking an important role in the supermarket, bars, restaurants, seafood and meat processing plants, poultry slaughtering, leather manufacturing, chemical dye industries, concrete cooling, ocean-fishing and artificial skiing field. Tremendous ICE LEADER ice machines have been exported to America, Africa, Australia and other countries every year with the greatest praised and advocated by the domestic and overseas customers for its innovative technology and excellent quality.
FLAKE ICE MACHINES
Factory supply
350kg~50ton flake ice machines
TUBE ICE MACHINES
Factory supply
1ton~50ton tube ice machines
Manufacturing Technique
Raw material processing→parts processing→whole machine assembly→quality inspection→delivery
Application
Certifications
Packaging and Shipping
