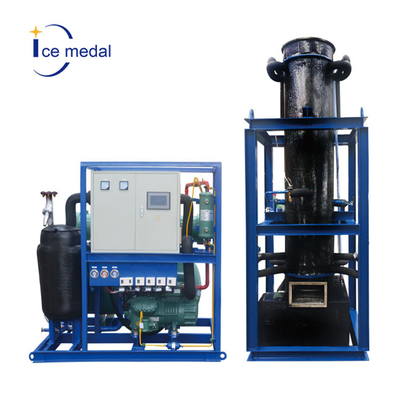

Icemedal commercial large industrial ice 10 tons tube ice machine price

1.0 set
MOQ
Icemedal commercial large industrial ice 10 tons tube ice machine price
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Condition: New
Ice Shape: tube ice
Voltage: 380V/3P/50Hz, 415V/3P/50Hz, 220V/3P/60Hz
Power: 22.65kw
Dimension(L*W*H): 1600x1400x2250mm
Weight: 1800 KG
Warranty: 1 Year
Key Selling Points: Easy to Operate
Ice storage capacity: 1000kg, Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Compressor brand: Bitzer
Application: Commercial
Name:: Ice Tube Maker Machine
Refrigerant:: R404a or R22
Application:: Cold Drinks or Wine
Cooling way:: Water Cooling or air cooling
Material: SUS304 Staineless Steel
Contonller:: PLC
Material:: Stainless Steel 304
After Warranty Service:: Video technical support, Online support, Spare parts,
Certification:: CE
Power supply: 380V/3P/50Hz, 415V/3P/50Hz, 220V/3P/60Hz,
Основная информация
Сертификация: CE
Оплата и доставка Условия
Packaging Details: Ice Tube machine 1. Standard wooden case. 2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings. 3. Machine come into use, customer only need prepare power for the machine. 4. All required components
Supply Ability: 30 Set/Sets per Month
Характер продукции

Commercial 1 5 10 20 30 ton tube ice maker machine philippines for ice plant

1. Our tube ice machine advantage:

The daily production of the tube ice machine is from 1 ton to 50 tons. The 1 ton to 8 tons tube ice machines are the integrated design. The 10 tons to 50 tons tube ice machines are the split design. The refrigerant is R22, R404a or R507. Due to the tube ice machine adopt the full liquid refrigeration system, the refrigerant quantity needed is large, so by using different refrigerant, the machine price will be different. The machine voltage will be customized according to clients local condition, normally the voltage is: 380-415v/50hz/3ph, 220-240v/60hz/3ph, 380v/60hz/3ph, 420-440v/60hz/3ph.

The non standard tube ice machine can be customized according to customer's special requirement.

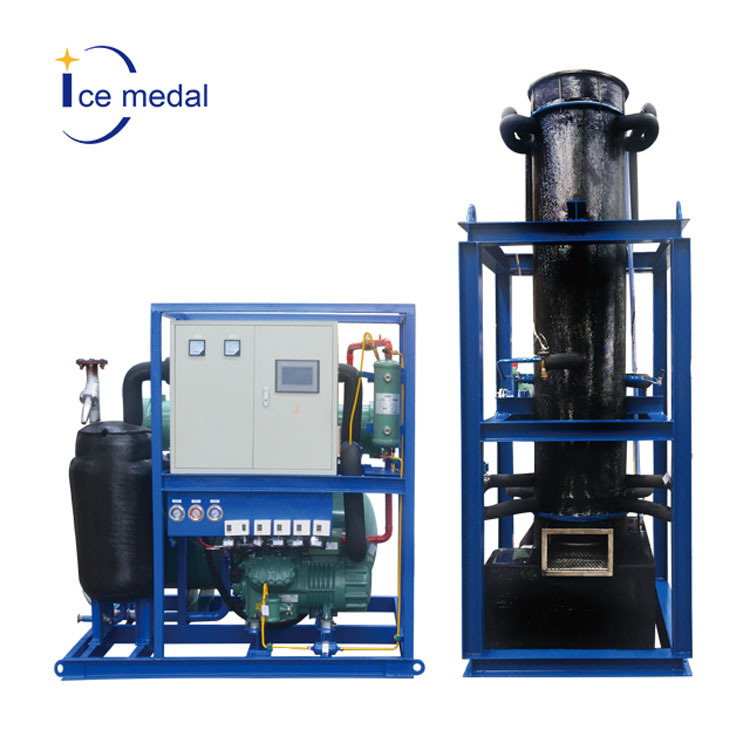

2. Detailed Images

3. Tube ice machine parameter:

Model Daily Output(T/24h) Compressor Power Fan Power for Cooling Tower Cooling Pump Power Unite Size (L*W*H mm) Integrated type Unit N.W.(KG)
TV10 1 4.1 kw 0.25 kw 1.1 kw 1100*900*1780 900
TV20 2 7.44 kw 0.25 kw 1.5 kw 1250*1000*1950 1200
TV30 3 10 kw 0.55 kw 1.5 kw 1300*1100*2200 1500
TV50 5 19.9 kw 0.55 kw 2.2 kw 1600*1400*2250 1800
Model Daily Output(T/24h) Compressor Power Fan Power for Cooling Tower Cooling Pump Power Unite Size (L*W*H mm)Split type Unit N.W.(KG)
Mian Host Brine Tank
TV100 10 27.9 kw 1.5 kw 4 kw 1900*1600*1850 1200*1200*3390 3500
TV150 15 46.4 kw 1.5 kw 5 kw 2700*2000*2200 1500*1200*4250 4250
TV200 20 55.7 kw 2.2 kw 7.5 kw 2800*2200*2500 1500*1200*4700 6500
TV300 30 83.6 kw 2.2 kw 7.5 kw 3100*2200*2500 1800*1500*5700 7200
TV400 40 111.4 kw 2.2 kw 11 kw 3900*2250*2500 2000*1500*6800 8300
TV500 50 139.3 kw 3.75 kw 15 kw 4500*2250*2500 2200*1800*7200 9500
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2.Power supply: voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3.Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃.
4.(Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
5.(The final interpretation of the above mentioned parameters is in ICEMEDAL, there will be no further notice, if there any technical change. )

4. Drawing display:

5. Company introduction:

6. Package and transportation:

7. Application Industry:

The tube ice produced by the tube ice machine is crystal clear and the length of the tube ice can be adjusted. The entire production process is clean and hygienic, without any harmful substances to the human body, and can be in direct contact with food. It is widely used in food preservation industries such as cold drinks, fisheries, and markets.

8. Certification:

10. FAQ & Our service

1. Questions before quotation

A. Would you make ice from seawater, saltwater or freshwater?

B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?

C. What’s the power supply?

D. What is the application of the flake ice produced?

E. Which cooling mode would you prefer to? Water or air, Evaporative cooling?

2. Installation & commissioning

A. Installed by customers according to the manuals, online instructions and live video conference of ICEMEDAL.

B. Installed by ICEMEDAL engineers.

a. ICEMEDAL would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all installations and commissioning.

b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions.

c. Power, water, installation tools and spare parts need to be ready before ICEMEDAL engineers arrive.

3. Warranty & Technical support

A. 1 year after Bill of Lading date.

B. Any failure occurred within the period due to our responsibility, ICEMEDAL will supply the spare parts for free.

C.ICEMEDAL provide full technical support and training courses after equipment installation and commissioning.

C. Permanent technical support & consultation all life long for the machines.

D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.

365 days X 7 X 24 hours phone / EMAIL assistance

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

We are on-line at your service, you can contact us directly or send enquiry.
