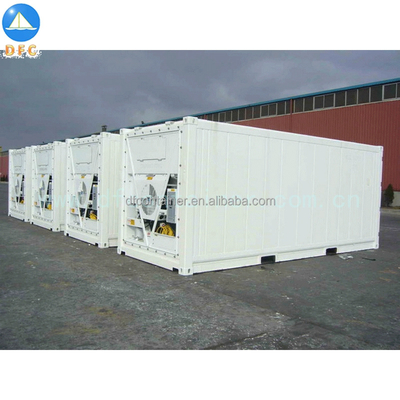

20GP 40GP 40HC Transporting Reefer Containers Cold Container Refrigerator Containers China Brand
keywords:refrigerator shipping container, reefer container, cooling container , vegetable shipping container
Standard and certificate:
Containers shall comply with following in their latest editions :
1) ISO/TC-104
668 | - | Dimensions and ratings(1993 edition) |
6346 | - | Coding, identification and marking(the third edition 1995) |
1161 | - | Specification of corner fittings(1990 edition/Cor.1.: 1990) |
1496/2 | - | Specification and testing thermal containers(1996 edition) |
3874 | - | Freight containers, handling and securing. |
6359 | - | Freight containers-Consolidated data plate |
2) The International Union of Railway (UIC) code 592 OR.
3) The Customs Convention on the International Transport of Goods(TIR).
4) The International Convention for Safe Containers (CSC).
5) Transportation Cargo Containers and Unit Loads Quarantine Aspects and Procedures by Commonwealth of Australia Department of Health. (TCT)
6) provide certificates from classification society (BV, ABS, GL, CCS, LR, KR).
The specifications of 20’ reefer containers:
1 Dimension
| External Dimensions | Internal Dimensions |
Length | 6,058 ( 0, -6 ) mm | 5,456 ( 0, -12 ) mm |
Width | 2,438 ( 0, -5 ) mm | 2,273 ( 0, -10 ) mm |
Height | 2,591 ( 0, -5 ) mm | 2,294 ( 0, -10 ) mm |
2 Door Opening
Width .................. | 2,290 ( 0,-5 ) | mm |
Height ................... | 2,264 ( 0,-5 ) | mm |
Cargo access height | 2,221 ( 0,-5 ) | mm |
3 Fork Pocket
Width .................. | 360 | mm |
Height ................... | 115 | mm |
Center distance ....... | 2,050 | mm |
4 Inside Cubic Capacity
28.4 cu.m 1,002 cu.ft
5 Rating
Maximum Gross Weight .............. | 30,480 kg | 67,200 lbs |
Maximum Payload ............. | 27,440 kg | 60,500 lbs |
Tare Weight ............... | 2,500 kg | 5,510 lbs |
Tare Weight(incl. Unit 540KG) | 3,040 kg | 6,700 lbs |
Applications or special features:
1. ISO standard reefer container.
2. for sea, inland, and railway transportation.
3. convenient for loading, lifting, moving.
1. we can design similar products in different types according to different customize requirements.
2. arrange transportation for customers.
3. arrange "one way" transportation for "SOC" containers.
4. provide professional consultation services.
