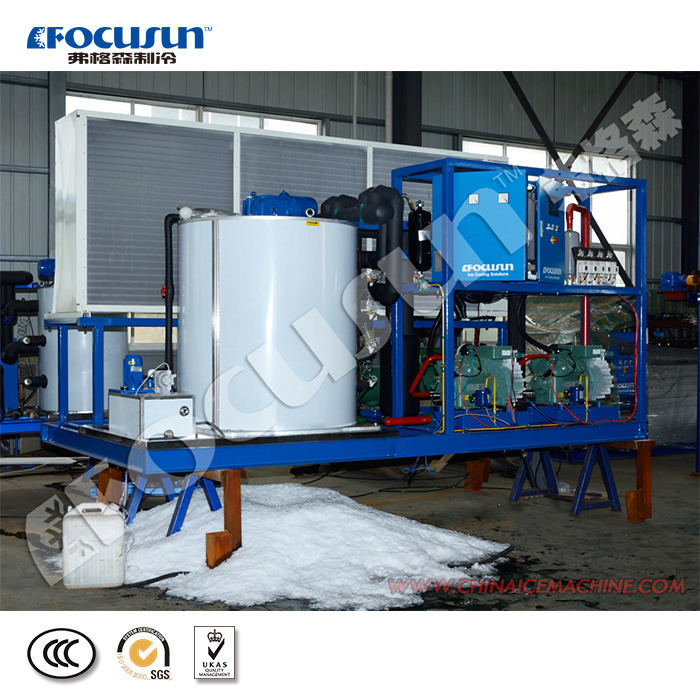

Fresh-keeping Focusun 2021 5 ton flake ice machine with oversea engineers instructions

1.0 Sets
MOQ
$12,500.00(>=1 Sets)
цена
Fresh-keeping Focusun 2021 5 ton flake ice machine with oversea engineers instructions
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Condition: New
Ice Shape: Flake Ice
Voltage: 380v/220V
Power: 22kw
Dimension(L*W*H): 2200*1050*1550mm
Weight: 1500kg
Warranty: 15 Months
Key Selling Points: High-accuracy
Ice storage capacity: 1000kg
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 3 years
Core Components: Engine
After-sales Service Provided: Engineers available to service machinery overseas
Name: Flake Ice Machine
Application: Fresh-keeping
Compressor: Bitzer
Cooling way: Water Cooling/air cooling/evaporative cooling
Refrigerant: R404a/R22a
Material: Stainless Steel 304
Keyword: Flake Ice Machine
Product name: Commercial flake Maker
Type: Automatic Flake Ice Machine
After Warranty Service: Video technical support, Online support, Field maintenance and repair service
Local Service Location: None
Showroom Location: None
Сертификация: ce
Основная информация
Сертификация: ce
Оплата и доставка Условия
Packaging Details: 20 feet container each set 40 feet container each set
Supply Ability: 10 Set/Sets per Month
Характер продукции
Company Information

FOCUSUN---Cooling Technical Master Since 1929, Germany

As one of the most professional ice machine manufacturers in the world, Focusun always develops high refrigeration technology with innovation. Our R&D center is located in Jiangsu Province, China, with more than 35,000 square meters of standardized modern factory and advanced product testing platform. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms. Over a decade, we have provided quality service to more than 16,000 professional clients in 88 countries around the world.
Product Description

Breif Introduction of Flake ice manchine.

It usually varied from 0.5 ton to 60t . other specifications need to be customerized.

there are two types , one is common type fake ice machine used for fresh water. the other is marine seawater flake ice machine used for ships. the marine seawater flake ice machine is covered with stainless steel both inside and outside so that can effectively anti corrode.

Standard power supply for small capacity ice flake machine is 380V/3P/50Hz and it also can be customized to meet different electrical requirements.

Certifications
Detailed Images

Categories

Flake ice machine is different from other types ice machine. the flake ice comes out from the bottom, so the machine must be put on a higher place.

Both inside and outside are covered by stainless steel. it won't be corroded by seawater

Configuration:

The design meets with the standard of the classification society. The use of one or more Bitzer (oil) semi-hermetic piston compressor accords with sea water cooling and sea water condenser. All parts are welded together. So it is strong enough to run normally even in a pitching and rolling ship.

Flake ice features

1. the flake ice can be directly used for cooling food for adoption of stainless steel.

2. Irregular ice flakes with size about 40×40mm and thickness around 1.5-2.5mm.
3. there is no acute angle so it will not damage the surface of cooled object.
4. larege contact and fast cooling speed.
5. easy to crush and mold.

Equipment Features:

1. internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
2. Stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.
3. the design of large water recieving plate can prevent water leaking at the bottom of evaporator.
4. photoelectric switch is directly installed at the bottom of evaporator to realize automatic control of full ice.
5. direct liquid feeding and dry evaporation, simple&safe to control
6. integrated modular design,convinient to install and maintain.

Our Service

1. OEM Manufacturing welcome: Product, Package...

2. Factory visit

3. We will reply you for your inquiry in 24 hours.

4. After sending, we will track the products for you at proper time, until you get the products. When you got the goods, our engineer for the installation and offer training till you 100% give a satisfication. If you have any questions about the problem, contact with us, we will offer the solve way for you.


FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.

Q6. What is your aim?
A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with reasonable price.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.





Perfect service system:

All Focusun ice machines come out with 15 months full warranty. If the machine breaks down in 15 months, Focusun will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Focusun will supply the parts and service only for factory cost.

Process: Please provide the copy of Sales Contract and describe the problems appeared.

Problems confrimation:
Slight problem: Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem: A We will dispatch our Quality and Problems Appraisers to make a confirmation; B Have a negotiation of the compensation and sign agreements; C Our After-Sales Department will perform the duties as the agreement
