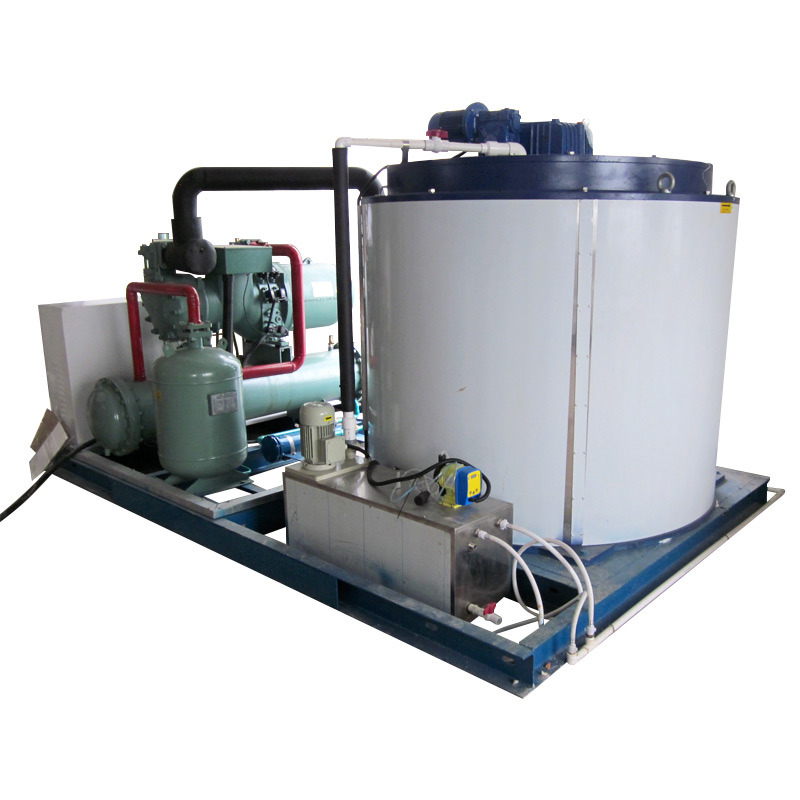

Commercial Flake Ice Machine 20 Ton/Day

High-giants is high-tech company with unique design,producing and selling flake ice machine block ice machine and cube ice machine and cold room, all spare parts of the flake ice machine series adopt to the stainless steel or corrosion-resistant aluminum alloy material and meets the requirement of the food and processing industrial standards.

Fresh water flake ice machine- 500kgs/day to 50Tons/days

Seawater flake ice machine- 500kgs/day to 50Tons/days

Marine flake ice machine- 500kgs/day to 50Tons/days

Block ice machine-1T/day to 20T/day

Cube ice machine-700kgs -1T/Days

Specification of 10ton flake ice maker:

1. Compress:
2. Evaporator: Self-designed, produced, processing efficient ice-maker
3. Condenser: Shell and tube water cooling condenser
4. Expansion valve: Danfoss, Emerson
5. Refrigerant: R22 / R404A
6. Controller: PLC (Touch screen operation interface for option)
7. Power: 3N/380V/50Hz (It can be made according to the customers demand)

High-giant ice flake machine plays tremendous roles in marine fisheries and aquatic products processing, chemical plant. It's a really useful industrial freezer.

Flake Ice Maker features:

1. Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant
2. Stainless steel materials, advanced processing equipment and heat treatment ensure the best heat transfer efficiency
3. The design of the large water receiving plate can prevent water leaking at the bottom of drum.
4. Photoelectric switch is directly installed in the bottom of evaporator
5. Direct liquid feeding and dry evaporation —— simple, safe and reliable control.
6. Integrated modular equipment installation is convenient for maintenance

Flake ice maker Application

1. Fishing:
Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other seaproducts. Fishing industry is the largest application field of flake ice machine.

2. Sea food process:
Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.

3. Bakery:
During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice.

4. Poultry:
Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.

5. Vegetables distribution and fresh-keeping:
Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.

6. Medicine:
In most cases of biosynthesis and chemosynthesis, flake ice is used to control the reaction rate and maintain the liveness. Flake ice is sanitary, clean with rapid temperature reduction effect. It is the most ideal temperature-reducing carrier.

7. Concrete cooling:
Flake ice is used as the direct source of water in concrete cooling process, more than 80% in weight. It is a perfect mediaof temperature controlling, can achieve effective and controllable mixing effect. Concrete will not crack if has been mixed and poured inconstant and low temperature. Flake ice is widely used in the large projects such as high standard express way, bridge, hydro-plant and nuclear power plant.

1. MOQ: One set.

2. OEM Accepted: We can produce as client’s demand. ice machine

3. Good Quality: We have strict quality control system.Good reputation on the market.

4. Fast & best service Delivery: We have big discount from forwarder (Long Contract).

5. Processional Design, Self design,efficient ice maker

6. Easy operation

7. Reasonable price

Check below for more information on placing an order

High-giants is high-tech company with unique design,producing and selling flake ice machine block ice machine and cube ice machine and cold room, all spare parts of the flake ice machine series adopt to the stainless steel or corrosion-resistant aluminum alloy material and meets the requirement of the food and processing industrial standards.

Mainly series :

Fresh water flake ice machine- 500kgs/day to 50Tons/days

Seawater flake ice machine- 500kgs/day to 50Tons/days

Marine flake ice machine- 500kgs/day to 50Tons/days

Block ice machine-1T/day to 20T/day

Cube ice machine-700kgs -1T/Days

How to make flake ice?

After the refrigeration system being to work normally, the water in water tank is pumped into the eater distribution pan by circulation pump, Drive bu the reducer, the water in the pan evenly flows down the inner wall of evaporator, the refrigerant in the refrigeration system evaporates through the loop inside the evaporator and absorbs large amount of heat bu exchanging heat with the water on the wall, As a result, the water flowing over the surface of inner evaporator wall sharply cools down to below the freezing point and freezes into ice instantaneously, parts of the water file attached onto the inner wall freezes into ice flakes, the remaining water that does not form ice flakes flows into the water pan at the bottom of evaporator and then into the water tank for recycling, when the ice on the inner wall reaches a certain thickness , ice blades are driven bu the reducer to peel ice from the inner wall, thus ice flakes form, fall into the ice storage bin at the bottom of the ice flaker and is stores for future use.
