Характеристики

Type: Evaporator

Application: Refrigeration Parts

Сертификация: ce

Capacity(T/24h): 40

Refrigeration power(Kcal/h): 206400

Reducer input power(KW): 4.0

Weight: 3480kg

L*W*H(mm): 3040*2338*2690

Pump motor power(W): 750

Основная информация

Сертификация: ce

Оплата и доставка Условия

Packaging Details: Plywood meeting the standard of export

Supply Ability: 100 Unit/Units per Month Evaporator produced by ourself is stock

Характер продукции

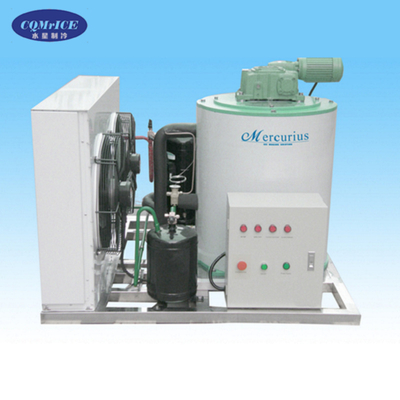

20 ton per day ice flake evaporator with ammonia system

Specification	F030SF-A	F050SF-A	F10SF-A	F15SF-A	F20SF-A	F25SF-A	F30SF-A	F50SF- A	F80SF- A
Capacity(T/24h)	0.3	0.5	1	1.5	2	2.5	3	5	8

Refrigeration power(Kcal/h)	1548	2580	5160	7740	10320	13975	15480	25800	41280

Reducer input power(KW)	0.18	0.18	0.18	0.25	0.25	0.25	0.25	0.37	0.75

Pump motor power(W)	70	70	70	70	120	120	120	120	180
Metering pump power(W)	5	5	5	5	5	5	5	5	-
Weight(KG)	80	136	168	289	289	289	363	650	687
LWH(mm)	574* 403 *603	658* 493 *720	658* 493 *880	813* 623 *913	813* 623 *913	813* 623 *913	813* 623 *1213	1256 967 1235	1678* 1256 *1493

Specification	F100SF -A	F150SF -A	F200SF -A	F250SF -A	F300SF -A	F350SF -A	F400SF -A	F500SF -A	F600SF -A
Capacity(t/24h)	10	15	20	25	30	35	40	50	60
Refrigeration power(Kcal/h)	51600	77400	103200	129000	154800	180600	206400	25800	309600
Reducer input power(KW)	0.75	1.5	1.5	2.2	3	3	4	4	4
Pump motor power(W)	250	250	550	550	750	750	750	1100	1100
Metering pump power(W)	-	-	-	-	-	-	-	-	-
Weight(KG)	1080	1460	2060	2520	2860	3150	3480	3880	4600
LWH(mm)	1678* 1256 *1643	2065* 1600 *2130	2065* 1600 *2470	2602* 1900 *2476	2602* 1900 *2706	2602* 1900 *3006	3040* 2338 *2690	3040* 2338 *2690	3040* 2338 *2690

product show

1.The ice flake evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of Aluminum.

2.Every flake ice scraper processed in special designing without any jointing then in high solidity and can rotate well nearly 8 years.

3.All components selected is of top-quality and meet configuration need, which makes the evaporator hold less space, and achieve best performance.

4.The flake ice is glittering and translucent, hard and pure

5.Ice making and dropping in high speed

Model	F400SF-A
Capacity(T/24h)	40
Electrical require	Full electric system complying,With the general international standard
Standard condition	Water inlet temp.16°C
Ambient temp. 25°C	25°C
Application condition	Ambient temp.5°C~40°C
water temp	0.5°C~35°C
Special condition	Ambient temp.-30°C~60°C
water temp	0°C~46°C
Ice thickness	1.5~2.2mm
Refrigerant	R717,R22 ,R404A,R507

The application domain of our products

Suitable for food processing, marine fishery, hotel freezing, supermarket fresh and slaughter and other related industries

Company Information

Established in 2010, Chongqing Mercurius Refrigeration Equipment Co., Ltd (“CQMRICE”) is famous in machinery processing industry , especially in research, design, manufacture and sale of evaporator of flake ice machine and flake ice machine,block ice machine and ice delivery systems. CQMRICE has more than 16,000 square meters for the factory production space with complete processes from Blanking, Welding, Annealling, Machining to Chromeplating, Purging, Assembling and test running. By handing of whole manufacturing process, processing quality and delivery time can be well controlled.

Why us?

1. Rich experience

Mercurius has more than 10 years of professional experience. We are real manufacturer for flake ice machine ,we even manufacturing the key part of flake ice machine : evaporator by ourself for all process from blanking, welding, annealling, maching , chrome-plate for ice freezing surface and hot dip zinc for carbon steel frame . Welcome visit our factory.

2. Professional team

Mercurius evaporator and ice system production capacity and quality keep improving.

3. Superior quality

Mercurius is trusted with excellent quality and timely service.

Plywood Case packing:

1.Standard plywood case for packing main ice machine and fittings.

2.Customer only need prepare power and water for running the machine.

3.All required components for install the machine will be provided for free.

4. After machine is shipped to you, our engineer will go to your site to help the commissioning for if you need.

Sales Manager:Lily Yang

Skype: sportsinchina

Wechat: lilyyangchina2014

Whatsapp: +86 13983118790

Mobile:0086-13983118790

Email: 1424552673 @qq.com

Address: 8th community,Chang' an village,Xipeng town, Jiulongpo District, Chongqing City,China

If there is any questions or requirements,please don't hesitate to cantact with us ,looking forward to cooperating with you soon ,thanks.
