Главная страница /Продукция/Контейнер холодильного груза/For transportation some perish goods or open side 40ft Thermoking medcine reefer container with two doors

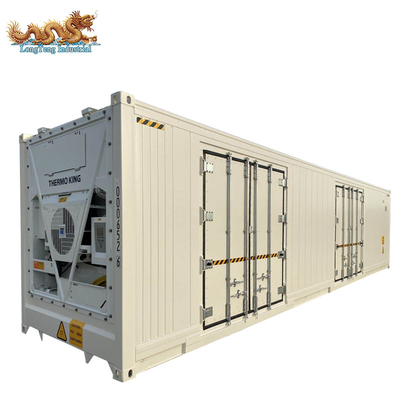

For transportation some perish goods or open side 40ft Thermoking medcine reefer container with two doors

1 Piece
MOQ
For transportation some perish goods or open side 40ft Thermoking medcine reefer container with two doors
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Type: Reefer Container, one door two doors in the side, dual zone reefer container, etc.
Length (feet): 40'
Capacity: 68 cbm
External Dimensions(l x W x H)(mm): 12.192 x 2.438 x 2.896 m
Internal Dimensions(l x W x H)(mm): 11.590 x 2.294 x 2.557 m
Name: side open reefer container
Material: Stainless steel, MGS, BN4, etc
Inside design temprature: -30° to + -30°
Application: for transportation some perish goods or medcine
Cooling equipment: Thermo king
Accessories: PVC curtain strip, meat hanging hooks, etc
Special: meat hanging reefer container, pallet wide reefer container
PVC curtain: Yes
Сертификация: BV GL ABS LR DNV, etc
Основная информация
Сертификация: BV GL ABS LR DNV, etc
Оплата и доставка Условия
Packaging Details: side open reefer container: Non packing requirement, SOC container
Supply Ability: 200 Piece/Pieces per Month
Характер продукции
Hot Sale Products
10ft Mini Reefer Container
20ft Reefer Container
40ft Reefer Container
40RH Reefer with Side Door
Dual Temperature Reefer
Minus 60 ℃ Deep Reefer
Product Description
40ft reefer container side door

Thermoking Carrier Daikin 20ft Side Open Reefer Container

Reefer container has cooling machine, is designed for the carriage of deep frozen, frozen and chilled (excluding hung-chilled meat) cargoes in the range of -25℃ to +25℃. The container is suitable to be subjected to severe thermal shock with external temperature ranging from -40℃ to +50℃

Advantage of Reefer Container

Excellent Insulation

Polyurethane foam with Cyclopentane (non-CFC) blowing agent.
Air leakage
Heat transfer rate

Durable Container Material

Aluminum Roof Lining
MGSS Side Lining
Aluminum T Floor
SPA-H Ourside Structure

Famous Cooling Machine

US Carrier Brand
US Thermo King Brand
Japan Daikin Brand
Specification
20 ft Refrigerated Container
Specification
20ft reefer
Machine Available
Daikin, Carrier, Thermo King
Max. Gross weight (KGS)
30,480
Cooling Capacity
6300/5580/AT -18°C  Inside / +38 °C Outside 60/50HZ
Tare Weight (KGS)
3,000
Main Circuit
3 PHASE AC 440, 460V/380, 400 415 60/50HZ
Payload (KGS)
27,480
Consumption
MAX. 13.6 60/50HZ
Cube Capacity
28.4
Temperature
-30 to +30 degree
External
MM
Material list
Length
6,058
Frame
Corten steel
Width:
2,438
Corrugated subfloor
MGSS
Height:
2,591
Refrigerant:
R134A
Internal
MM
Internal lining:
HGSS 0.7mm
Length:
5,456
Roof:
AL. 0.8mm
Width:
2,294
T floor
AL. h=63.5mm
Height:
2,273
Genset mount:
Yes
Door opening & other dimensions
Heat & air leakage
Width:
2,290
Heat Leakage Value (kcal/deg.c.hr)
Height:
2,264
Umax.
21
Cargo access height
2,221
Max. Air Leakage Value (cu.m/hr)
Loading Line:
2,198
Qmax.
4
Copmany Profile
Our Service

What Can We Do For You?

Timely Quick reply within 6 hours
High quality better price for open side container
Certifications for loading your own cargoes
45 days free stock in our container yard
SOC service & One trip (same as one way) service
OEM / ODM service, such as logo, color, type, etc.
Inspections service, etc...

FAQ

Q: Are your side open reefer container brand new?
A: Yes


Q: Is the size customizable?
A: 40ft is also available


Q:Can you produce customized container?
A: Yes,we can manufacture many kinds of special container.


Q: What is your terms of payment?
A: 50%T/T deposit in advance, the balance is paid before shipment


Q: Small order whether you could accept?
Our MOQ is 1pc


Q: What about delivery date?
Based on your quantity. For small quantity & ISO container, we are in stock at all Main Chinese port, about 7~ 10 days days. For large quantity & special container, have to reconfirm.


If you need more info. for side open reefer container, pls feel free to contact us:
