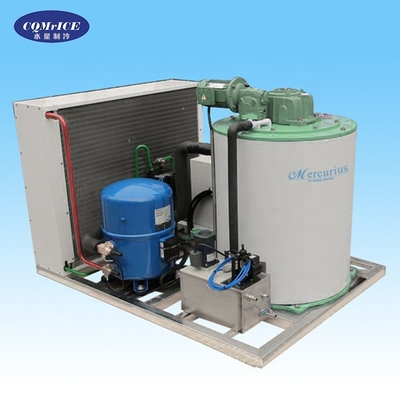

Heavy duty industrial ammonia cube ice maker round flake ice machines for sale with stainless steel sprayer

1 Unit
MOQ
$6,200.00(1 - 9 Units) $6,000.00(>=10 Units)
цена
Heavy duty industrial ammonia cube ice maker round flake ice machines for sale with stainless steel sprayer
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Condition: New
Ice Shape: Flake Ice
Voltage: 380V50HZ3PH
Power: 4.49KW
Dimension(L*W*H): 1520*1200*2663mm
Weight: 480kgs
Warranty: 12 Months
After-sales Service Provided: Engineers available to service machinery overseas
Сертификация: Other
Capacity: 1000kgs
Ice Machine Type: Flake Ice Machine
Cooling Mode: Air Cooling/Water Cooling
Flake ice thickness: 1.5-2.2mm
Ice Blade: 304 stainless steel spiral blade
Expansion Valve: Danfoss,Emerson
Evaporator: Self-designed (CQMRICE/MERCURIUS)
Compressor: Bitzer,Copeland,Danfoss,Maneuro, Hanbell
Refrigerant: Environmental refrigerant
Application: Ammonia,DX Cooling System,pump system
Ice storage: Can be provided
Основная информация
Сертификация: Other
Оплата и доставка Условия
Packaging Details: Plywood meeting the standard of export
Supply Ability: 100 Unit/Units per Month Evaporator produced by ourself is stock
Характер продукции

1500kg flake ice maker making machine with Stainless steel evaporator



fruit flake ice block making small machine in fishing plant





specification

MF030AF-A

MF050AF-A

MF10AF-A

MF15AF-A

MF20AF-A

MF25AF-A

MF30AF-A

MF50AF-A

Capacity(T/24h)

0.3

0.5

1.0

1.5

2.0

2.5

3

5

Refrigeration(Kcal/h)

1548

2580

5160

7740

10320

12900

15480

25800

Total input power(KW)

1.79

2.59

4.09

4.49

5.21

8.34

9.21

13.92

Compressor power(KW)

1.5

2.2

3.8

4.04

4.66

7.79

8.66

13.07

Reducer input power(KW)

0.18

0.18

0.18

0.25

0.25

0.25

0.25

0.37

Evaporator pump power(KW)

0.07

0.07

0.

07

0.07

0.12

0.12

0.12

0.18

Cooler power(KW)

0.12

0.12

0.18

0.36

0.36

0.36

0.36

0.54

Pipe size(”)

1/2

1/2

1/2

1/2

1/2

1/2

1/2

3/4

Weight(KG)

280

320

380

480

520

560

650

1380

L*W*H(mm)

1320*1050*

1680

1320*1560*

1680

1320*1050*

2030

1520*1200*

2663

1520*1200*

2663

1520*1200*

2663

1520*1200*

2663

2560*1270*

1305

  Note: Due to innovation, specifications subject to change without further notice.



1. CQMRICE’s evaporator is self-produced and is with complete processes from Blanking, Welding, Annealing, Machining to Chrome-plating, Purging, Assembling and test running. By handing of whole manufacturing process, processing quality and delivery time can be well controlled.

2.Space saved: the structure is compact and simple.

3.Full automatically: the whole ice making and dropping process are controlled by PLC controller.

4.High refrigeration efficiency: the latest evaporator with vertical spiral ice cutter is adopted. Water is sprayed by the sprinkler on the inner wall of the evaporator, forming ice quickly. At the same time, the spiral cutter cuts the forming ice, which makes full use of the evaporator surface and increases the efficiency of ice making.

5.Ice Skate

A.Material is 304 stainless steel.

B. Internally-scraping ice skate can help reduce energy consumption and running with low resistance and noiseless.

6.Ice Making Drum

A..Material of flake ice making evaporator/drum: inner wall is Chrome plated carbon steel with heating and annealing process/ 304 stainless steel , outside wall is 304 stainless steel.

B. Every batch of materials must get a quality report and pass X-Ray flaw detection.



 Model

 MF15AF-A

 Daily Ice Production

 1.5t/24h

 Refrigeration Power (Kcal/h)

 7740Kcal/h

 Power Consumption (KW)

 4.49

 Compressor Power (KW)

 4.04

 Standard Power Supply

 380V/50Hz/3P other power supply can be custom made

 Water Pressure

 0.1Mp-0.5Mpa

 Refrigerant

 R404a

 Water Pipe

 1/2"

 Weight

 480KG

 Dimensions (mm) with ice bin

 1520*1200*2663

 Standard Working Condition:

 Ambient Temp: 25℃, Water Inlet Temp: 16℃

 Cooling Way

 Water Cooling/Air Cooling/Evaporative Cooling

 Applicable Condition

 Ambient Temp: 5℃-40℃, Water Inlet Temp: 5℃-30℃

 Power Supply

 380V-420V, 50Hz/60Hz, 3P; 220-240V, 60Hz, 3P; 440V-480V, 60Hz, 3P

 Refrigerant

 R22/R404A

The application domain of our products

Suitable for food processing, marine fishery, hotel freezing, supermarket fresh and slaughter and other related industries




Established in 2010, Chongqing Mercurius Refrigeration Equipment Co., Ltd (“CQMRICE”) is famous in machinery processing industry , especially in research, design, manufacture and sale of evaporator of flake ice machine and flake ice machine,block ice machine and ice delivery systems. CQMRICE has more than 16,000 square meters for the factory production space with complete processes from Blanking, Welding, Annealling, Machining to Chromeplating, Purging, Assembling and test running. By handing of whole manufacturing process, processing quality and delivery time can be well controlled.



Why  us?

1. Rich experience

Mercurius has more than 10 years of professional experience. We are real manufacturer for flake ice machine ,we even manufacturing the key part of flake ice machine : evaporator by ourself for all process from blanking, welding, annealling, maching , chrome-plate for ice freezing surface and hot dip zinc for carbon steel frame . Welcome visit our factory.

2. Professional team

Mercurius evaporator and ice system production capacity and quality keep improving.

3. Superior quality

Mercurius is trusted with excellent quality and timely service.

Plywood Case packing:

1.Standard plywood case for packing main ice machine and fittings.

2.Customer only need prepare power and water for running the machine.

3.All required components for install the machine will be provided for free.

4. After machine is shipped to you, our engineer will go to your site to help the commissioning for if you need.
