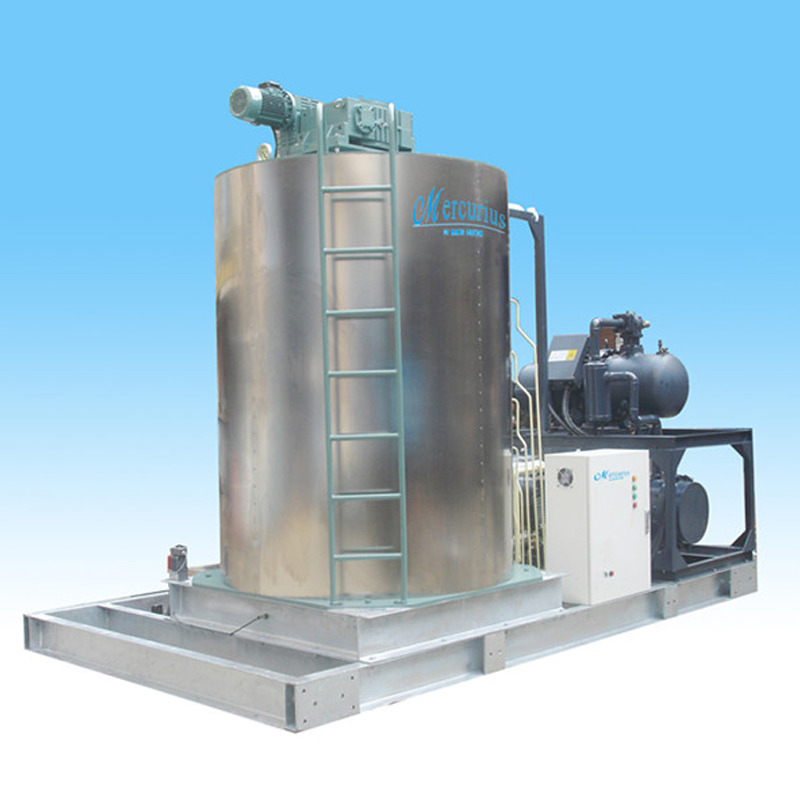

Fresh-keeping 40 ton flake ice machine for fishing industry

1 Set
MOQ
Fresh-keeping 40 ton flake ice machine for fishing industry
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Condition: New
Model Number: MF400WF-A
Ice Shape: Flake Ice
Voltage: 380v/50hz/3p
Power: 140.4KW
Dimension(L*W*H): 4000*2900*3200mm
Weight: 6400kgs
Warranty: 12 Months
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 40000kgs
Сертификация: Other
Compressor: hanbell
Cooling way: water Cooling
Refrigerant: R404A/R22
Ice size: 1.5mm~2.2mm in thickness
Type of water: fresh water
Ice storage: Can be provided
Application: Fresh-keeping
Основная информация
Сертификация: Other
Model Number: MF400WF-A
Оплата и доставка Условия
Packaging Details: standard export wooden case(Plywood Case)
Supply Ability: 50 Set/Sets per Month
Характер продукции

40 tons flake ice machine for fishing industry



Specification

MF80AF-A

MF100AF-A

MF150AF-A

MF200AF-A

MF250AF-A

MF300AF-A

MF400AF-A

Capacity(T/24h)

8

10

15

20

25

30

40

Refrigeration power(Kcal/h)

44720

55900

83850

111800

139750

167700

223600

Total input power(KW)

43.92

46.42

52.2

77

89.5

108

140.4

Compressor power(KW)

31.1

34.1

50.9

64.2

83.1

93.4

120.4

Reducer input power(KW)

0.75

1.5

1.5

1.5

2.2

3

4

Evaporator pump power(KW)

0.25

0.55

0.55

0.75

0.75

0.75

0.75

Cooling tower pump power(KW)

3.7

3.7

3.7

5.5

5.5

7.5

11

Cooling tower blower power(KW)

1.1

1.1

1.1

2.2

2.2

3

4

Pipe size (″)

3/4

3/4

3/4

3/4

3/4

3/4

3/4

Weight(KG)

1860

2050

3850

4420

4980

5400

6400

L*W*H(mm)

3200*1800*

1700

3200*1800*

1900

3500*2200*

2100

3500*2200*

2400

3700*2500*

2400

3700*2500*

3100

4000*2900*

3200

  Note: Due to innovation, specifications subject to change without further notice.



1. CQMRICE’s evaporator is self-produced and is with complete processes from Blanking, Welding, Annealing, Machining to Chrome-plating, Purging, Assembling and test running. By handing of whole manufacturing process, processing quality and delivery time can be well controlled.

2.Space saved: the structure is compact and simple.

3.Full automatically: the whole ice making and dropping process are controlled by PLC controller.

4.High refrigeration efficiency: the latest evaporator with vertical spiral ice cutter is adopted. Water is sprayed by the sprinkler on the inner wall of the evaporator, forming ice quickly. At the same time, the spiral cutter cuts the forming ice, which makes full use of the evaporator surface and increases the efficiency of ice making.

5.Ice Skate

A.Material is 304 stainless steel.

B. Internally-scraping ice skate can help reduce energy consumption and running with low resistance and noiseless.

6.Ice Making Drum

A..Material of flake ice making evaporator/drum: inner wall is Chrome plated carbon steel with heating and annealing process/ 304 stainless steel , outside wall is 304 stainless steel.

B. Every batch of materials must get a quality report and pass X-Ray flaw detection.



 Model

 MF400WF-A

 Daily Ice Production

 40t/24h

 Refrigeration Power (Kcal/h)

 223600Kcal/h

 Power Consumption (KW)

 140.4

 Compressor Power (KW)

 120.4

 Standard Power Supply

 380V/50Hz/3P other power supply can be custom made

 Water Pressure

 0.1Mp-0.5Mpa

 Refrigerant

 R404a

 Water Pipe

 3/4"

 Weight

 6400KG

 Dimensions (mm) with ice bin

 4000*2900*3200

 Standard Working Condition:

 Ambient Temp: 25℃, Water Inlet Temp: 16℃

 Cooling Way

 Water Cooling/Air Cooling/Evaporative Cooling

 Applicable Condition

 Ambient Temp: 5℃-40℃, Water Inlet Temp: 5℃-30℃

 Power Supply

 380V-420V, 50Hz/60Hz, 3P; 220-240V, 60Hz, 3P; 440V-480V, 60Hz, 3P

 Refrigerant

 R22/R404A

The application domain of our products

Suitable for food processing, marine fishery, hotel freezing, supermarket fresh and slaughter and other related industries




Established in 2010, Chongqing Mercurius Refrigeration Equipment Co., Ltd (“CQMRICE”) is famous in machinery processing industry , especially in research, design, manufacture and sale of evaporator of flake ice machine and flake ice machine,block ice machine and ice delivery systems. CQMRICE has more than 16,000 square meters for the factory production space with complete processes from Blanking, Welding, Annealling, Machining to Chromeplating, Purging, Assembling and test running. By handing of whole manufacturing process, processing quality and delivery time can be well controlled.



Why  us?

1. Rich experience

Mercurius has more than 10 years of professional experience. We are real manufacturer for flake ice machine ,we even manufacturing the key part of flake ice machine : evaporator by ourself for all process from blanking, welding, annealling, maching , chrome-plate for ice freezing surface and hot dip zinc for carbon steel frame . Welcome visit our factory.

2. Professional team

Mercurius evaporator and ice system production capacity and quality keep improving.

3. Superior quality

Mercurius is trusted with excellent quality and timely service.

Plywood Case packing:

1.Standard plywood case for packing main ice machine and fittings.

2.Customer only need prepare power and water for running the machine.

3.All required components for install the machine will be provided for free.

4. After machine is shipped to you, our engineer will go to your site to help the commissioning for if you need.

Contact us now to get the most competitive factory price for your target markets and your target customers.

Sales Manager:Lily Yang

Skype: sportsinchina

Wechat: lilyyangchina2014

Whatsapp: +86 13983118790

Mobile:0086-13983118790

Email: 1424552673 @qq.com

Address: 8th community,Chang' an village,Xipeng town, Jiulongpo District, Chongqing City,China

If there is any questions or requirements,please don't hesitate to cantact with us ,looking forward to cooperating with you soon ,thanks.
