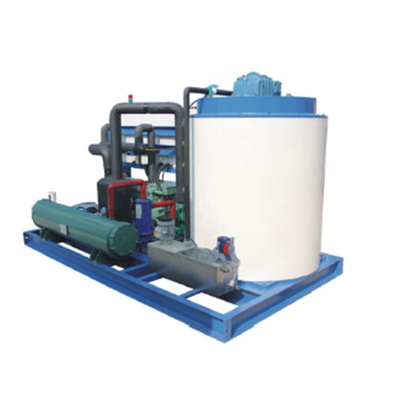

food & Beverage factory 10T seawater flake ice machine maquina hielo industrial ice maker

1 Unit
MOQ
$39,000.00(>=1 Units)
цена
food & Beverage factory 10T seawater flake ice machine maquina hielo industrial ice maker
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops
Condition: New
Ice Shape: Flake Ice
Voltage: 380V
Power: 32.5 KW
Dimension(L*W*H): 2500mm*2000mm*1700mm
Weight: 1260 kg
Warranty: 1 Year
Key Selling Points: Long Service Life
Ice storage capacity: other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: compressor
Cooling capacity: 65 KW
Evaporation temperature: -22°C
Condensation temperature: 40°C
Standard ambient temperature: 25°C
Standard inlet water temperature: 18°C
Evaporator material: 316 stainless steel
Cooling method: Water cooling
Ice thickness: 1.5mm~2.2mm
Water supply: Sea water/Salt water
Flake ice temperature: -5°C~-10°C
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Peru
Showroom Location: Peru
Сертификация: ce
After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Основная информация
Сертификация: ce
Оплата и доставка Условия
Packaging Details: Wooden Case
Supply Ability: 20 Unit/Units per Month
Характер продукции
Product Description

Introduction

The flake ice has obvious advantages compared with the traditional type of briquettes (bulk ice) and snow flakes. It has the advantages of being dry, not easy to agglomerate, good fluidity, good hygienicity, large contact area with fresh-keeping products, and not easy to damage fresh-keeping products. In many industries, it is the preferred product to replace other types of ice.
Specification
Model
10T
Ice production
10000kg/24 hours
Cooling capacity
65 KW
Standard Voltage
3-phase 380V 50HZ
Total installed power
32.5 KW
Evaporation temperature
-22°C
Condensation temperature
40°C
Standard ambient temperature
25°C
Standard inlet water temperature
18°C
Evaporator material
316 stainless steel
Ice machine size
2500mm*2000mm*1700mm
Ice machine net weight
1260 Kg
Cooling method
Water cooling
Flake ice thickness
1.8-2.5mm
Flake ice temperature
-5 °C ~ -10 °C
Water supply
salt water, sea water
Standard working conditions
 ambient temperature 20-35 °C, inlet water temperature 18-25 °C. (maximum ice production)

Features

1, direct low temperature, low ice temperature, up to -10 °.
2, the ice is dry and clean, the shape is beautiful, it is not easy to block, the fluidity is good, and the hygiene is convenient.
3, sheet-like structure, so the contact area with the refrigerator, the cooling effect is wonderful.
4, sheet ice without sharp edges and corners, will not damage the surface of the cold collection, and is very conducive to storage and transportation.
5, the thickness of ice can reach 1mm-2mm, and no ice crusher, can be used at any time.
Applications
The flake ice machine has been widely used in aquatic products, food, supermarkets, dairy products, medicine,
chemistry, vegetable fresh-keeping transportation, marine fishing and other industries. With the development of society and the
continuous improvement of people's production level, the industry using ice is becoming wider and wider. The quality of ice is
getting higher and higher.


1. Processing of aquatic products: Flake ice can reduce the temperature of processing medium, washing water and aquatic products, prevent bacteria from growing, and keep fresh in the processing of aquatic products.
2. Processing of meat products: The flakes that meet the hygienic standards are mixed with meat and stirred. In order to achieve the purpose of cooling and preservation.
3. Food processing: If the bread is mixed or twice creamed in the production of bread, use a piece of ice to quickly cool down to prevent fermentation. Slaughter spiral pre-cooling.
4. Supermarket and aquatic products market: used for the preservation, display and packaging of aquatic products.
5. Vegetable processing: The process of harvesting agricultural products and vegetables uses flake ice to reduce the metabolism of the agricultural products and the growth rate of bacteria. Extend the shelf life of agricultural products and vegetables.
6. Long-distance transportation process: products such as ocean fishing and vegetable transportation that need to be cooled and preserved are more and more widely used in long-distance transportation to cool and preserve fresh flake ice.
7. It is also widely used in laboratories, medicine, chemical industry, artificial ski resorts and other industries.
8. Hospital: hypothermia, refrigerated medicine, plasma freezing.
9. Concrete engineering: When pouring concrete in a hot season, it is necessary to effectively and reasonably control the pouring temperature of concrete. It is the most effective way to stir the flakes and cold water.
