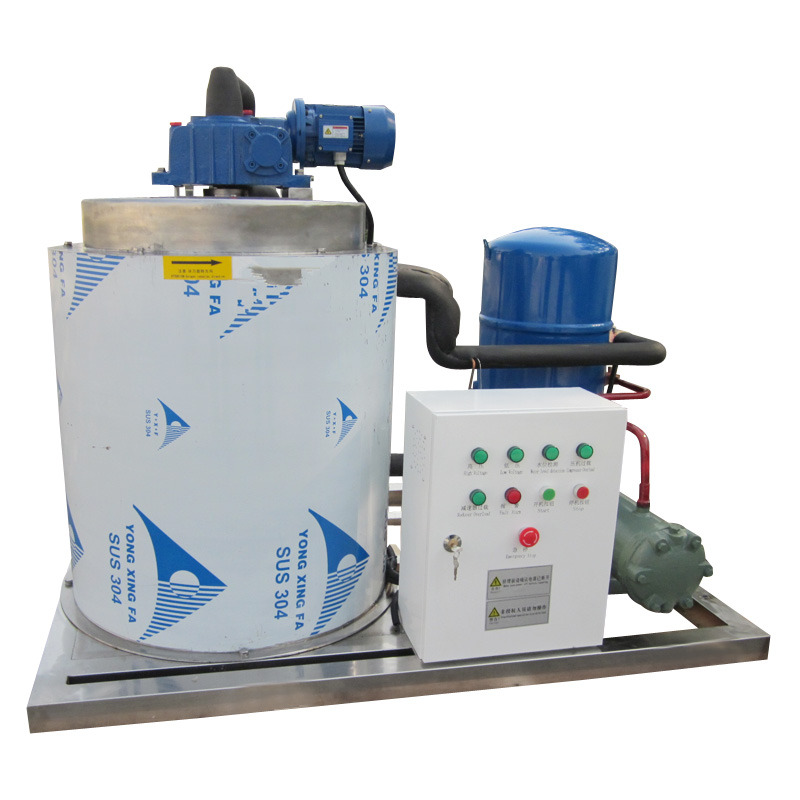

Freon 5 Ton Flake Ice Machine Chemical Pigment Cooling

High-giants smaller flake ice machine is widely used in supermarket and shopping malls to keep vegetable,fruit and seafood product fresh.flake ice is not only can keep the referigeration products from dehydration, but also maintain the color, taste and quality, ensure keeping fresh in a long time.

Flake ice machine detailed parameters:

Standard operating condition:

1.Ambient temperature 23°C; Water temperature:15°C. The production capacities will be increase 10% when the ambient temperature and water temperature falls about 5°C.

2 Voltage: 380V/3PH/50Hz (Special voltage by confirm before quote)

3. water supply pressure: 0.1Mpa-0.3Mpa.

4. Cooling equipment working condition: evaporator temperature -23°Condenser temperature 40°C

5. Flake ice thickness::1.5-2.6mm, ice of temperature is -8°C

Plywood Case packing

1. MOQ: One set.

2. OEM Accepted: We can produce as client’s demand. ice machine

3. Good Quality: We have strict quality control system.Good reputation on the market.

4. Fast & best service Delivery: We have big discount from forwarder (Long Contract).

5. Processional Design, Self design,efficient ice maker

6. Easy operation

7. Reasonable price

Check below for more information on placing an order

High-giants is high-tech company with unique design,producing and selling flake ice machine block ice machine and cube ice machine and cold room, all spare parts of the flake ice machine series adopt to the stainless steel or corrosion-resistant aluminum alloy material and meets the requirement of the food and processing industrial standards.

Mainly series :

Fresh water flake ice machine- 500kgs/day to 50Tons/days

Seawater flake ice machine- 500kgs/day to 50Tons/days

Marine flake ice machine- 500kgs/day to 50Tons/days

Block ice machine-1T/day to 20T/day

Cube ice machine-700kgs -1T/Days

How to make flake ice?

After the refrigeration system being to work normally, the water in water tank is pumped into the eater distribution pan by circulation pump, Drive bu the reducer, the water in the pan evenly flows down the inner wall of evaporator, the refrigerant in the refrigeration system evaporates through the loop inside the evaporator and absorbs large amount of heat bu exchanging heat with the water on the wall, As a result, the water flowing over the surface of inner evaporator wall sharply cools down to below the freezing point and freezes into ice instantaneously, parts of the water file attached onto the inner wall freezes into ice flakes, the remaining water that does not form ice flakes flows into the water pan at the bottom of evaporator and then into the water tank for recycling, when the ice on the inner wall reaches a certain thickness , ice blades are driven bu the reducer to peel ice from the inner wall, thus ice flakes form, fall into the ice storage bin at the bottom of the ice flaker and is stores for future use.

15 Tons flake ice machine chemical dye cooling
